Special function of tc series ac ev charger
1.RCM Version
If DC leakage occurs during charging process, the charging pile will be disconnected, automatically recovered after eliminating leakage fault without manual operation. The controller will automatically inspect RCMU before every charging process to confirm normal condition of RCMU.
2.DLB Version
Dynamic load balancing (DLB) type is designed for reasonable usage of household electricity by connecting an external transformer to the charging pile. When the total current volume detected by the transformer exceeds the set current, the charging pile will gradually decrease charging current until the charging pile stops charging. When the total current detected by the transformer is less than the set current after the peak of electricity consumption, the charging pile automatically starts to realize dynamic balancing by selecting suitable current for charging. The charging current of the charging pile is not fixed, varies from 10A to 32A based on actual requirement, which can not be set.

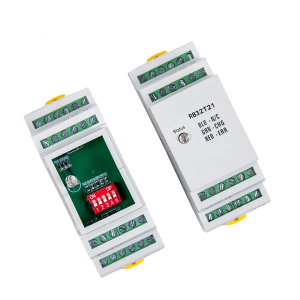

DIP setting switch of charging current controller has been changed to transformer current setting, which can realize current setting by a transformer under different conditions. The wiring distance between transformer and charging pile can reach more than 150m.
3.RFID Version
It can realize charging by card to prevent unauthorized users, totally five cards from the factory, which is built in DIP switch for card loss.
The RCM / DLB / RFID function all can option.
Applications of ac ev charger:
| Type | RC132 | RC232 | RC332 | RC432 |
| AC Power | 1P+N+PE | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Power Voltage | AC230~±15% | AC230~±15% | AC400~±15% | AC400~±15% |
| Rated Current | 10~32A | 10~32A | 10~32A | 10~32A |
| Max.Power | 7KW*2 | 7KW*2 | 22KW*2 | 22KW*2 |
| Frequency | 50-60HZ | |||
| Cable Length | 5m | Socket | 5m | Socket |

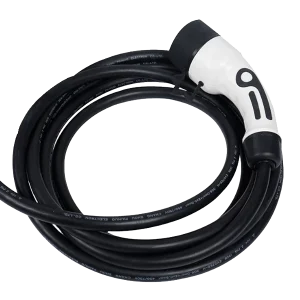

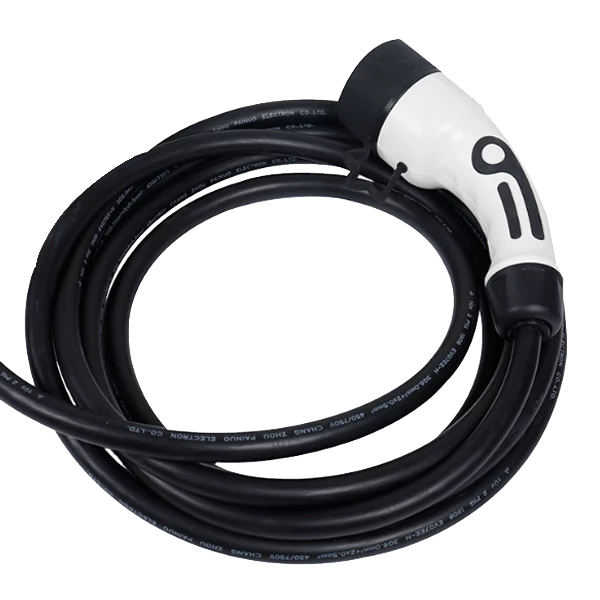

| Sockets/Plugs | 2*plug type2 (1) | 2*socket type2 | 2*plug type2 | 2*socket type2 |
| Weight | 9.9kg | 6.3kg | 16kg | 12kg |
| Dimension (D*W*H) mm | 240*340*120 | 240*340*120 | 395*260*125 | 395*260*125 |
| IP grade | IP55 | |||
| Environment Temperature | -25ºC ~ 40ºC | |||
| Cooling Mode | natural cooling | |||
| Humidity | no condensation | |||
| Special function | RCM / DLB optional | |||

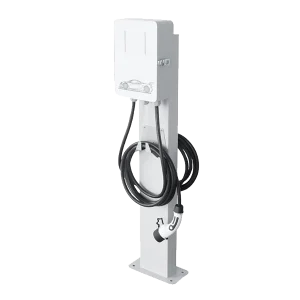

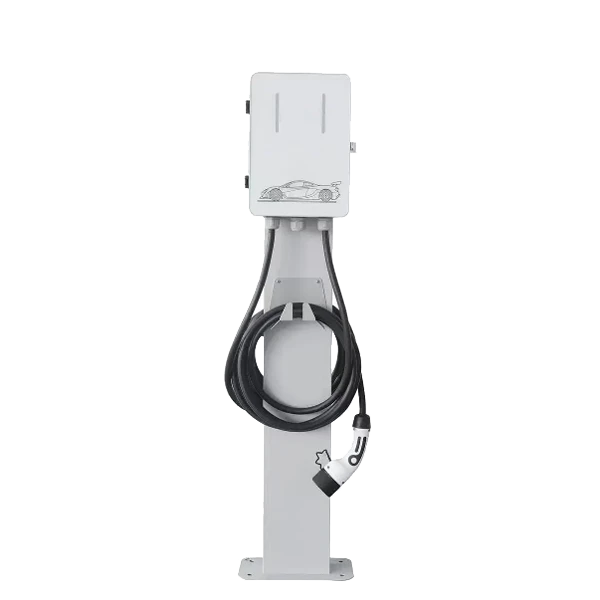

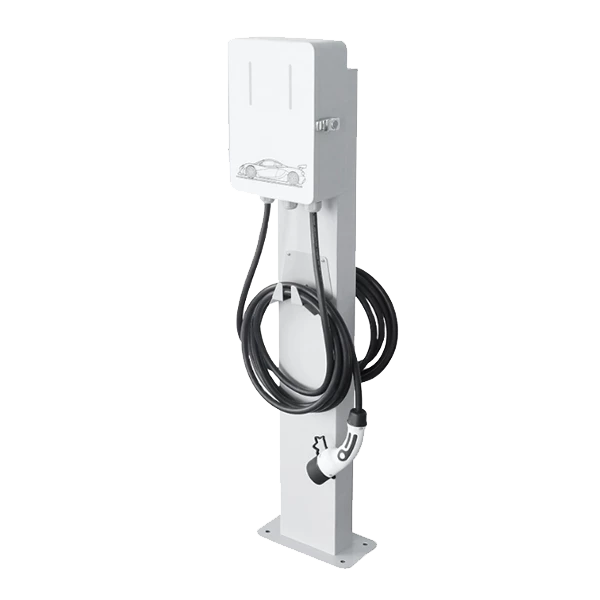

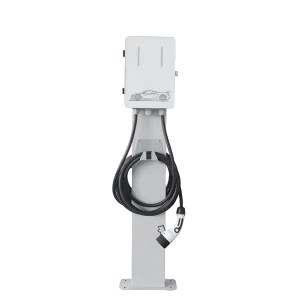

| Installation Mode | wall (default) / column | |||

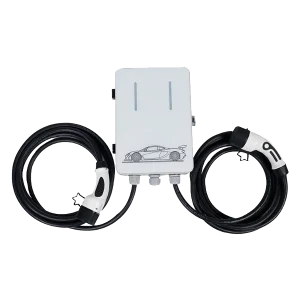

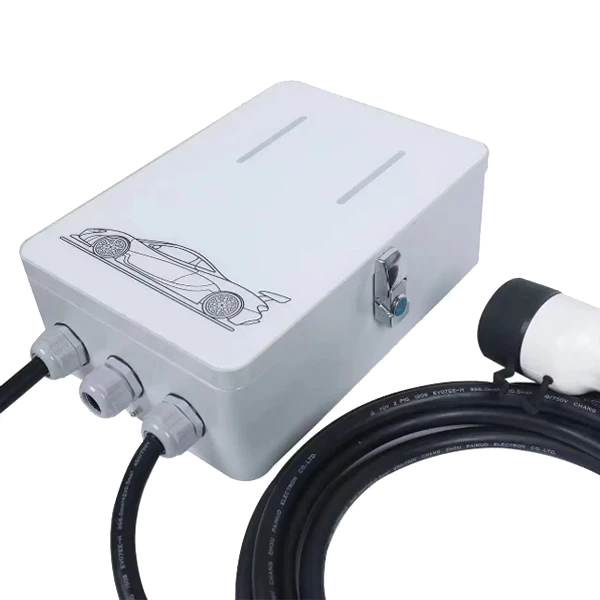

Dual-gun home ev charger
Design your own idea wallbox and print your logo

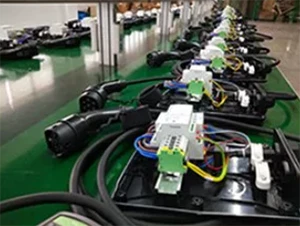

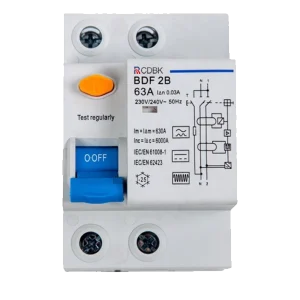

We are the company in China ,who produce both ev charger and its key parts type B RCD and controller.(Normally ,the ev charger plant only produce ev charger but don’t produce type B RCD)
