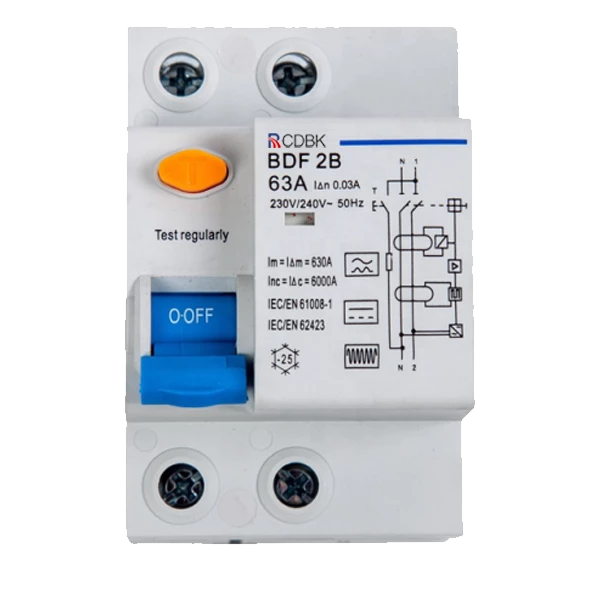

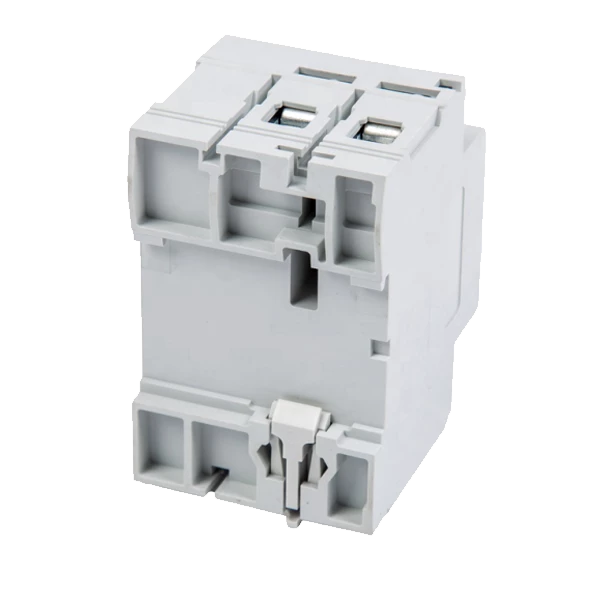

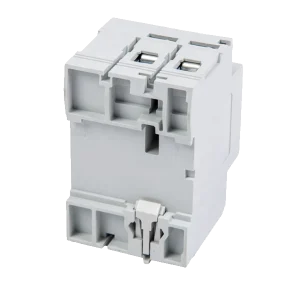

Type B RCD for EV Charger
Type b rcd for ev charger is a ideal electric protection solution for ev charger. As a significant standard upgrade, with IEC/EN 61008-1 basic standard for RCCB’s AC and A type, added IEC/EN 62423 requirement for B type. It offers reliable protection which is vulnerable smooth DC residual currents.Applicable to fault protection, current leakage protection and fire protection.Available in 16, 32, 63A current ratings.
Applications of BDF-100 RCCB :
Which are vulnerable to smooth d.c. residual currents
– Frequency converters,
– Photovoltaic systems, a.c side,
– Charging stations for electric vehicles,
– Variable speed machine tools,
– UPS, computer data centres
– Elevator controls,
– Cranes of all kinds
– Electronic equipment on construction sites,
Approvals CE
Technical data of the type b rcd for ev charger
|
Standard |
IEC/EN 62423 & IEC/EN 61008-1 |
||
|
Electrical features |
Type (wave form of the earth leakage sensed) |
B |
|
|
Rated current In |
A |
16A,25A,32A,40A, 63A,80A,100A |
|
|

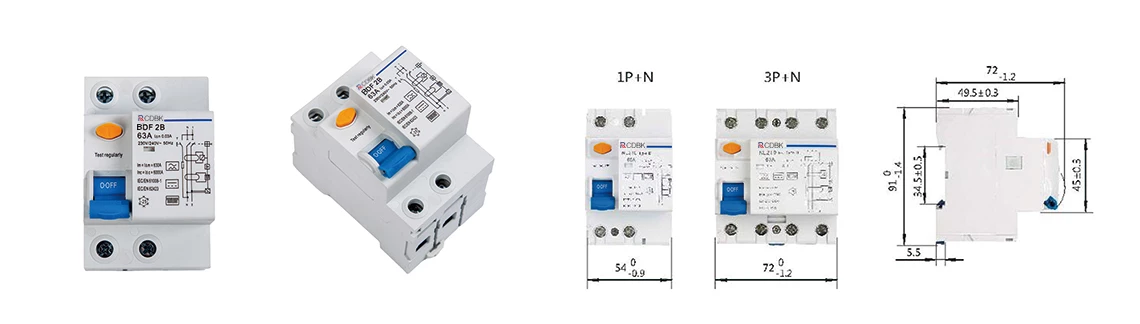

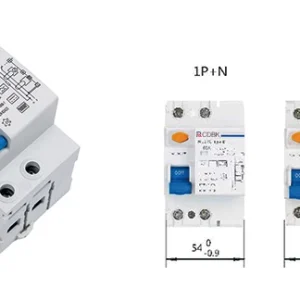

Poles |
1P+N, 3P+N |
||
|
Rated voltage Ue |
V |
1P+N:230/240∨~; 3P+N:400/415v~; |
|
|
Rated sensitivity I△n |
A |
0.03, 0.1, 0.3 |
|
|
Insulation voltage Ui |
V |
500 |
|
|
Rated residual making and breaking capacity I△m |
A |
500 (In=25A/40A) |
|
|
630 (In=63A) |
|||
|
Short-circuit current Inc=I△c |
A |
10,000 |
|
|
SCPD fuse |
A |
|
|
|
break time under I△n |
S |
≤0.1 |
|
|
Rated frequency |
Hz |
50 |
|
|
Rated impulse withstand voltage(1.2/50) Uimp |
V |
4,000 |
|
|
Dielectric test voltage at ind. Freq. for 1 min |
kV |
2.5 |
|
|
Pollution degree |
2 |
||
|
Mechanical |
Electrical life |
2, 000 |
|
|
Mechanical life |
10,000 |
||
|
Fault current indicator |
Yes |
||
|
Protection degree |
IP20 |
||
|
Ambient temperature (with daily average≤35℃) |
℃ |
-25…+40 |
|
|
Storage temperation |
℃ |
-25…+70 |
