Applications of the portable electric car charger:
| Product Information | |
| Charging mode | Smart charger |
| Input/ output power rating and current | Single phase 2KW /16A ,Three phase up to 9.6kW/40A |
| Input/ output voltage | 110v-240v, 50Hz/60Hz |
| Network type | TT, TN |
| Connector type | SAE J1772Type 1 plug,23 feet (7m) |

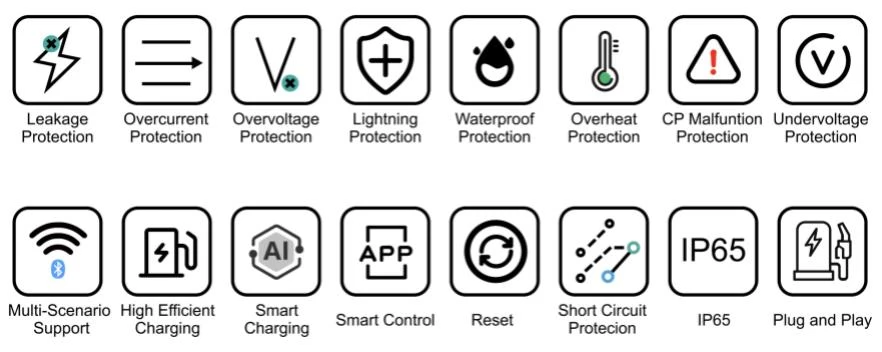

| Protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
| General Characteristics | |
| IP | Type 3R |
| Operating altitude | 6562 feet(2000m) |
| Operating temperature range | （-20℃ to +55℃） |
| Storage temperature range | （-20℃ to +85℃） |
| Mounting | Wall or on a pedestal |

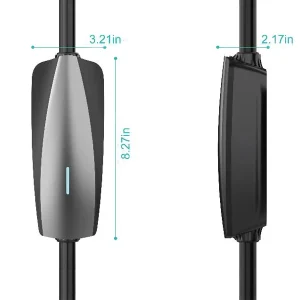

| Dimensions (H×W×D) | 8.27×3.21× 2.17 inch (210×81.5×55mm) |
| User Interface | |
| Status indication | LED RGB |
| User interface | Easy Charge APP; |
| Connectivity | Bluetooth, Wi-Fi |
| Cable length | Customized charging cable length |
| User authentication | APP |
| Software Update | |
| Software Update | OTA updates via web portal |
| Certification and Standards | |
| Safety and compliance | UL 2594, UL 2231- 1, UL 2231-2, UL 2251 UL1998 |
| Certification | CSA / UL / CE / CB / UKCA |
| Warranty | 24 months, warranty extension possible |
fastest and efficiently
- Up to 40A, 200-240V
- Power: 2kw, 3.5kw, 7kw, the maximum power of 9.6kw
- Customized charging cable length
- Power adjustable by APP
High Reliability
- Evaluated and tested according to CE, CB, UKCA, UL,CSA certificates
- IK10 high impact resistance
- Type 3R / Level II
Smart Charging
- Capable of charging at full power from temperature between – 20℃~+55℃
- With App

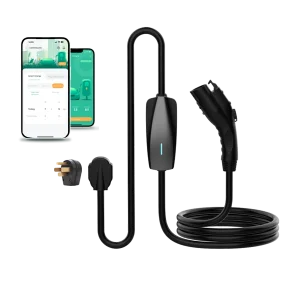

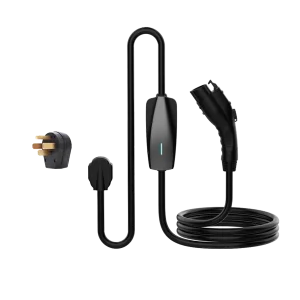

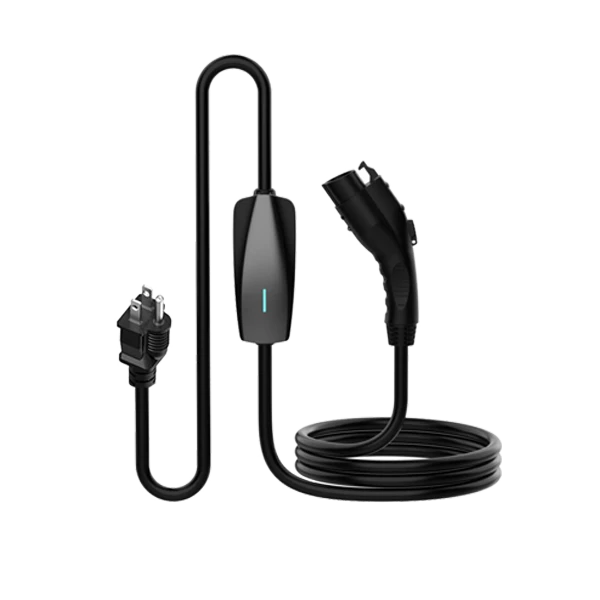

Your best portable electric car charger
- American Stardards: Up to 16A, 110V,maximum power of 2KW
- European Stardards: Up to 40A, 230v, 3.5KW,7KW and 11.5KW
- Power adjustable by APP
- Evaluated and tested according to UL and CSA standards
- Type 3R / Level II
- Connector type SAE J1772 Type 1 plug or IEC61851, 23 feet (7m)
